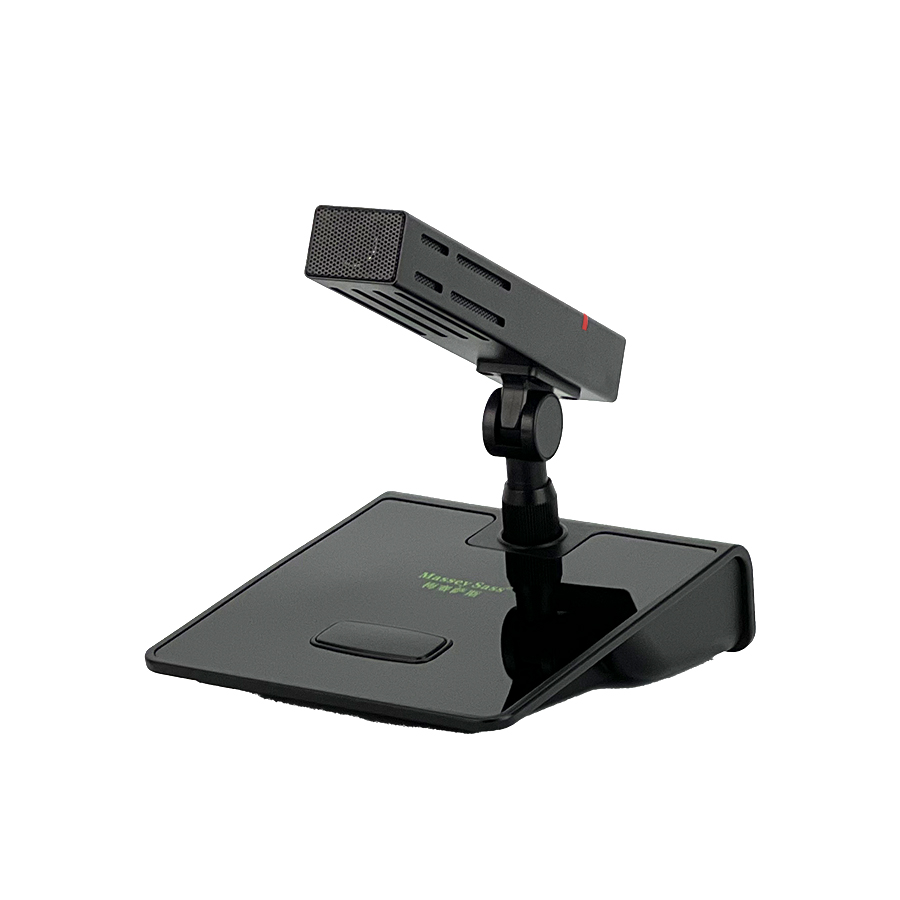

MS-H05 (Metal square tube with plastic base)

• Built-in 14mm microphone capsule, highly directional microphone pickup technology, effective pickup distance up to 80cm

• Unidirectional microphone with anti-puff and built-in windproof shield

• Built-in background noise cancellation function effectively blocks ambient noise for clearer sound pickup

Removable battery, 3VAC 220/48V phantom power switching;

• 100° effective pickup angle prevents interference from nearby microphones and suppresses feedback;

• Low impedance 200Ω balanced audio output;

• External windproof material minimizes wind noise and other disturbances for clearer and smoother sound quality;

• Anti-slip pads on the bottom prevent microphone slippage and reduce the impact of desktop vibrations.

SKU: MS-H05 (Metal square tube with plastic base) Category: Conference Microphone

Description

● Transducer: Condenser microphone core (14mm diameter)

● Polar pattern: Cardioid

● Audio output: Balanced output

● Sensitivity: -33dB±3dB

(F=1KHz, S.P.L=1Pa, 0dB=1V/Pa)

● Maximum SPL: 105dB (F=1KHz, THD<5%) ● Output impedance (ohms): <200Ω (at=1KHz) ● Maximum undistorted output: 250mV 1.35mA (-68±2 dBm) ● Power supply voltage (V): DC3V/DC9V/Phantom 48V auto-conversion ● Microphone boom size: 181mm ● Weight: 694g ● Indicator: Tube light ● Switch: Electronic touch switch

Additional information

Package Contents	One 8-meter female/male cable, one adapter cable, one 10V power adapter, one windproof cotton pad, and one instruction manual/certificate of conformity.
