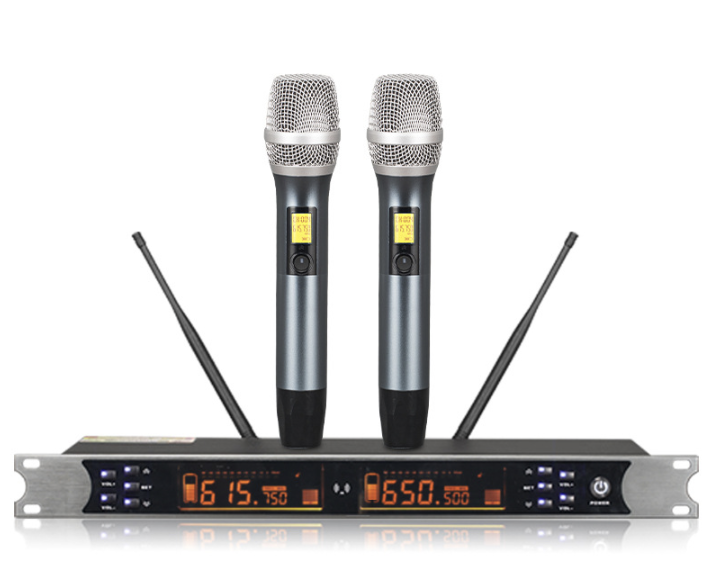

SK-2200

Description

SK-2200 Technical Specifications
System Specifications
Carrier Frequency Range: 470-960MHz
Operating Range: 200 feet
Frequency Oscillation Mode: PLL module loop-locked design
Modulation Method: FM
Bandwidth: 200kHz
Frequency Response: 50Hz-18kHz (±1dB)
Signal-to-Noise Ratio: >96dB (1kHz-A)
THD (1kHz: ≤0.5%@1kHz)
Pistol Launcher
Element: Dynamic Microphone
Display: LCD
Harmonic Radiation: <4nW RF Power Output: 10mW Current: 3V/120mA Battery: AA 1.5V*2 Receiver Sensitivity: 12dBuav (80dBs/N) Display: LCD Maximum Unbalanced Output: +10dBV Power Supply: DC +12V Current Consumption: 150mA@12V DC
