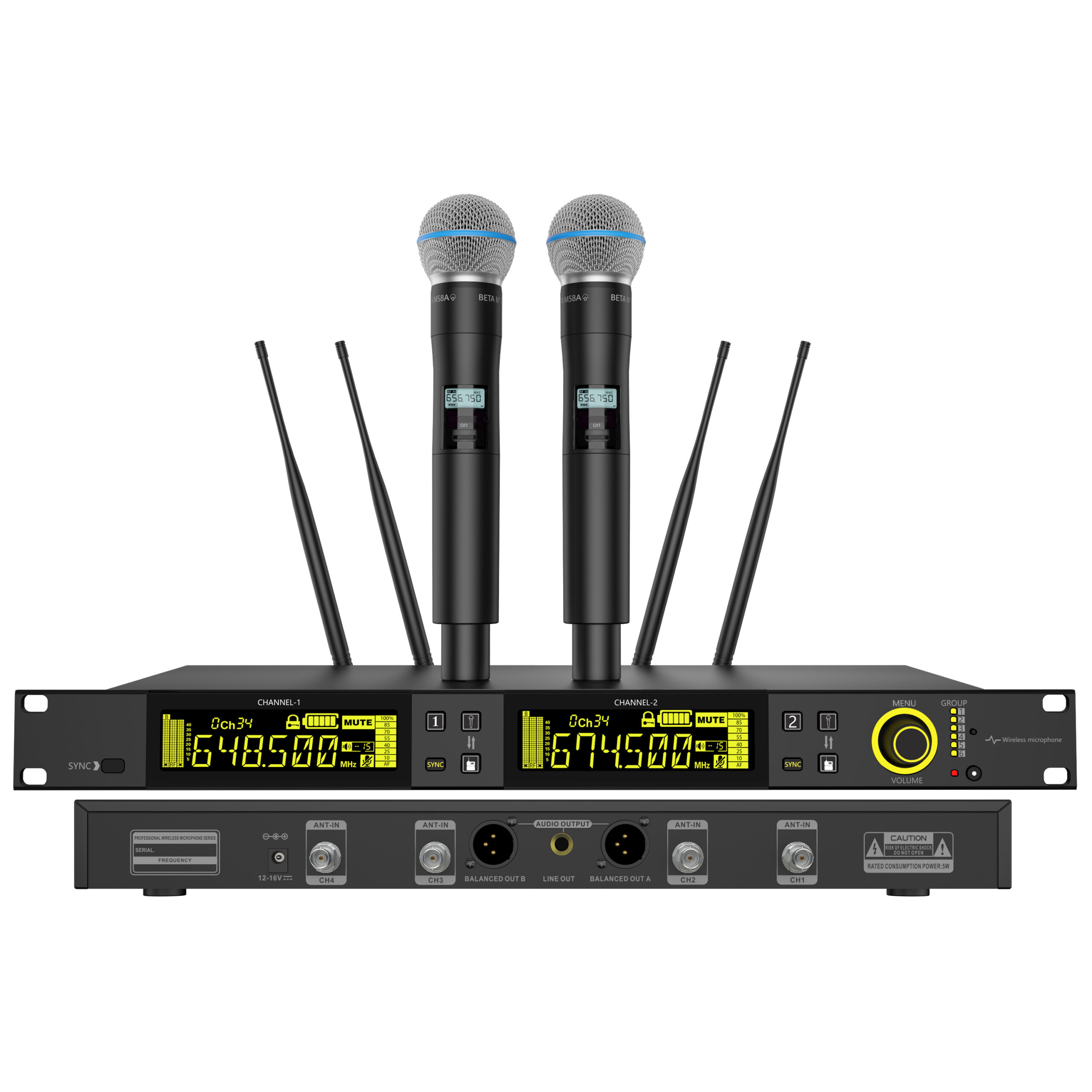

S2-Handheld

Description

I. Wireless Receiver
Carrier Band: UHF 610–937MHz
Number of Channels: Dual-channel
Modulation Method: FM
Sensitivity: S/N > 60dB at an offset of 25kHz and an input of 6dBμV
Bandwidth: 30 MHz
Maximum Offset: ±45kHz
Overall Signal-to-Noise Ratio (S/N): >105dB
Overall Distortion (T.H.D): 0.7% @1kHz
Frequency Response: 45Hz–18kHz ±3dB
Power Supply: DC 12V–16V 10W
Output Sockets: XLR balanced and 6.3 unbalanced sockets
Operating Distance: Approximately 300 meters
II. Handheld Transmitter
Carrier Band: UHF 610–937MHz
Harmonic Radiation: <-65dBm Maximum Offset: ±45kHz Frequency Response: 45Hz–18kHz ±3dB Bandwidth: 120 MHz Pickup Capacitor: Dynamic RF Power Output: 10mW Battery: AA ×2 Current Consumption: <100mA Continuous Operating Time: >10 hours
III. Handheld Transmitter
Carrier Band: UHF 610–937MHz
Harmonic Radiation: <-65dBm Maximum Offset: ±45KHz Frequency Response: 45Hz–18KHz ±3dB Bandwidth: 120 MHz Pickup Capacitor: Condenser RF Power Output: 10mW Battery: AA ×1 Current Consumption: <150mA Input Socket: 4-pin Mini XLR Connector Continuous Operating Time: >8 hours
